WAVETUNE
Perfect loop control for imperfect wavefronts
WaveTune is a unique application that seamlessly combines wavefront measurement and correction features with extensive instrument diagnostics. It is perfectly adapted to our HASO wavefront sensors, ILAO Star, and mirAO deformable, as well as to a wide range of active components from other manufacturers.
WAVETUNE
KEY FEATURES
Wavetune Adaptive Optics software works as and for :
– Wavefront analyzer hardware control including integration time, trigger mode, averaging

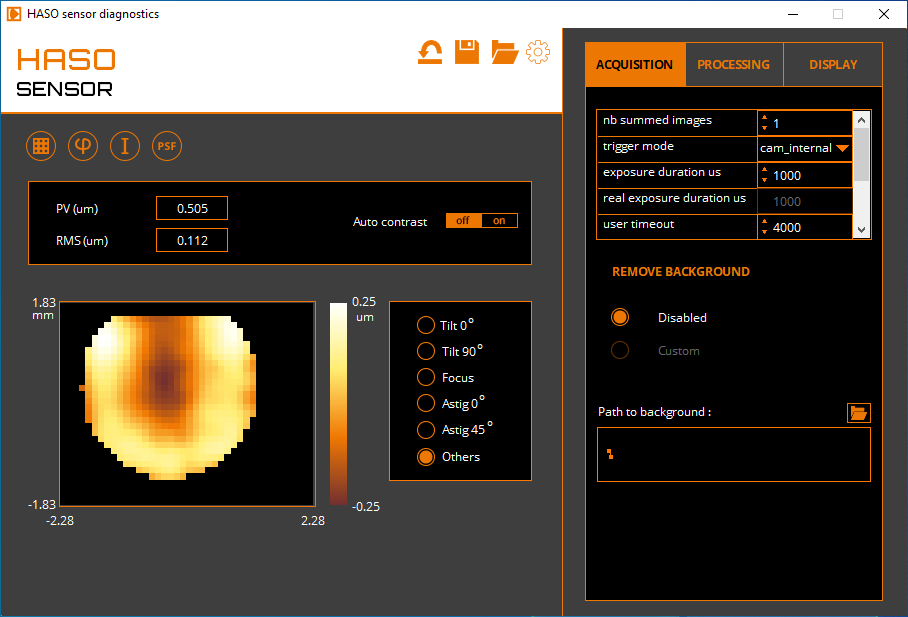

– Wavefront measurement

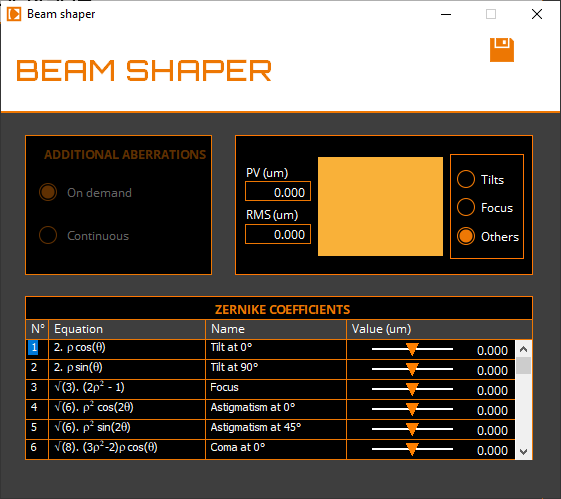

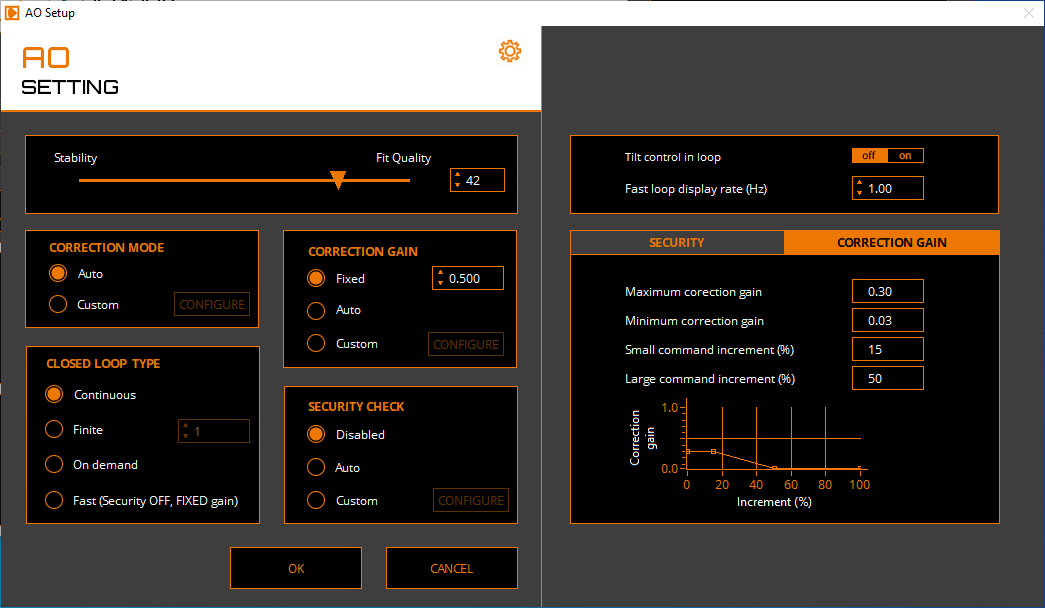

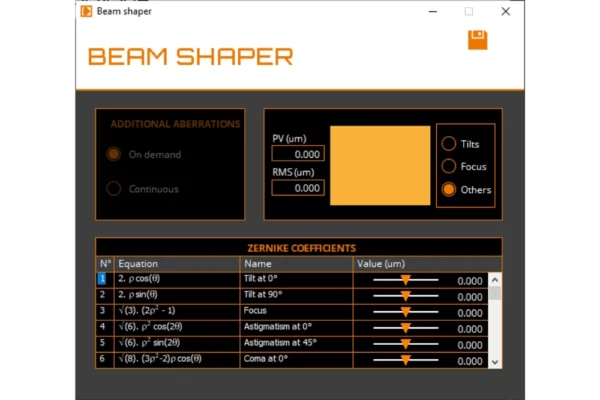

– Target wavefront formation – set tilt, curve and high-frequency aberrations; open- and closed-loop wavefront correction
– Unique security feature for UHIL allowing safe closed loop at full power
– Phase Retrieval algorithm PhaRAO is an optional extension of WaveTune. With the help of a simple far field camera, PharAO enables users to control and optimize the focal spot directly in the interaction chamber.
RECOMMENDED APPLICATIONS of Wavetune Adaptive Optics software
– Free-space communication
– Astronomy
– Microscopy
– Ophthalmology
– Ultra-intense lasers
COMPATIBLE WAVEFRONT CORRECTOR
– A wide range of SLMs are compatible – please contact us for more details.
– ILAO / ILAO STAR series
– Mirao 52 series
– Alpao DM series
– BMM Mini & Multi DM
– Meadowlark
– CILAS BIM, MONO, SAM
– Hamamatsu SLM
– Thorlabs DM
WAVEKIT SDK AO EDITION
KEY FEATURES
– Modal Wavefront Analysis + Intensity Analysis
– Wavefront Correction Diagnosis + Influence Matrix Analysis + AO Control
– System Integrate using either C/C++, Python or Labview SDK
– Several hundred available functions
– Dozens of examples
