WAVESQUARED
Version 4.4.1 (February 2024)

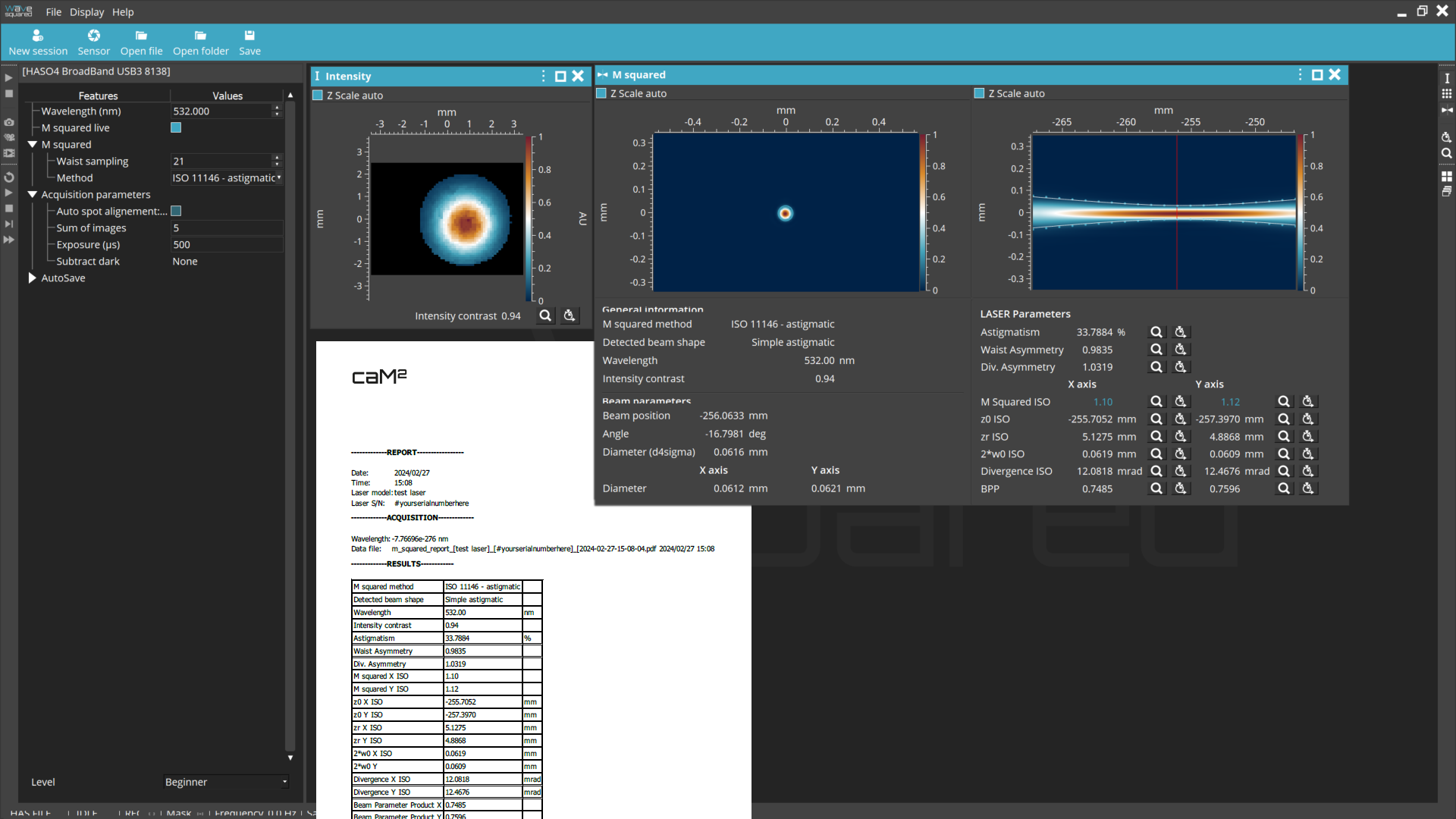

WAVESQUARED is the User Interface software that teams up with our CAM SQUARED sensors for laser beam diagnostic.
Based on our long-proven core engine, it offers a simplified interface to set up your laser quality testing in matters of seconds, display all laser quality metrics for analysis, and export data and report for traceability.
- Laser-specific UX (software, hardware, user guide)
- Easier to use (graphical interface, internal calculation cores, hardware management)
- Windows 11 Compatible
WAVESQUARED
WAVESQUARED M2 factor analysis software has been designed specifically to pair with CAMSQUARED M and CAM SQUARED L laser quality testing solutions for the lab or the production.
Key features M2 factor analysis software
+ 3 clicks acquisition set up
+ Live M2 measurement (µs to ms acquisition cycle)

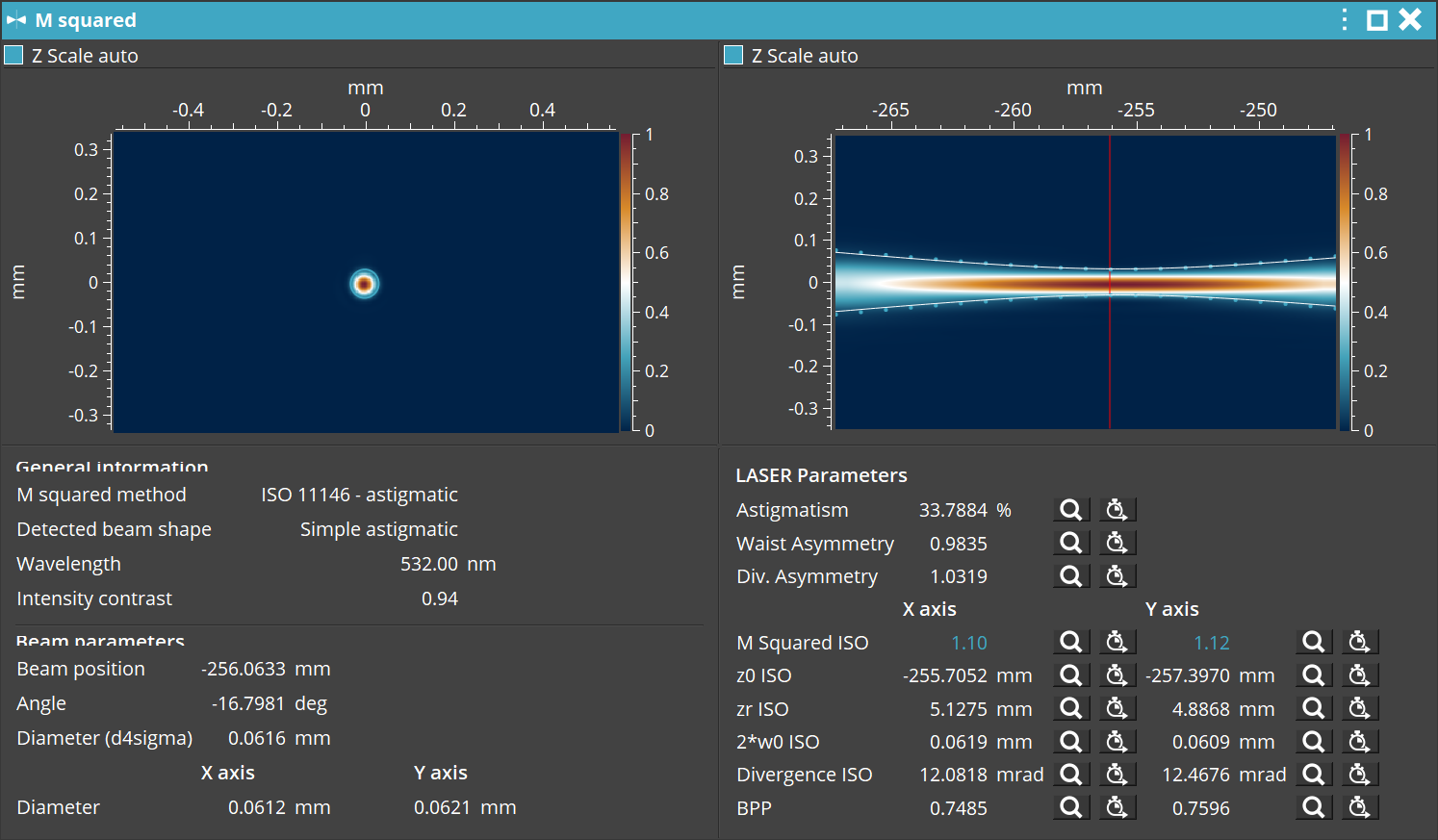

+ ISO 11146 standard (astigmatic, circular, general astig or auto detection)
+ Automatic pdf report generation for laser testing traceability
+ Compatible Windows 10 and Windows 11
Laser beam parameters and displays
+ M-Squared factor (M2)
+ Width at waist
+ Divergence angle
+ Beam Propagation Parameter (BPP)
+ Waist location
+ Astigmatism
+ Asymmetry ratio
and more. All parameters acquired in live can be displayed in time plots
Options in WAVESQUARED M2 factor analysis SOFTWARE

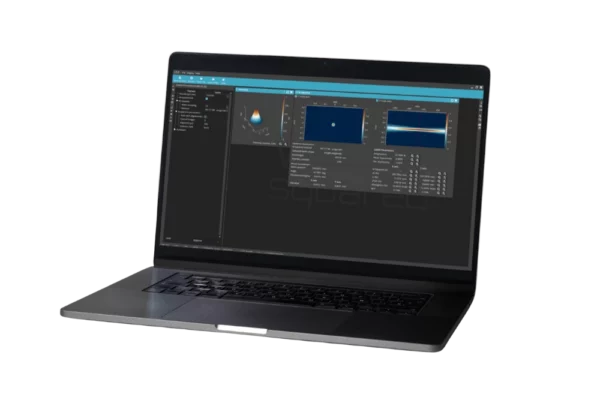

Full wavefront analysis is available in option. It is best for:
+ live alignment thanks to the knowledge of aberrations
+ collimation
+ beam pointing stability
