CIAO Adaptive Optics solution enables high resolution imaging for Astronomy & SATCOM

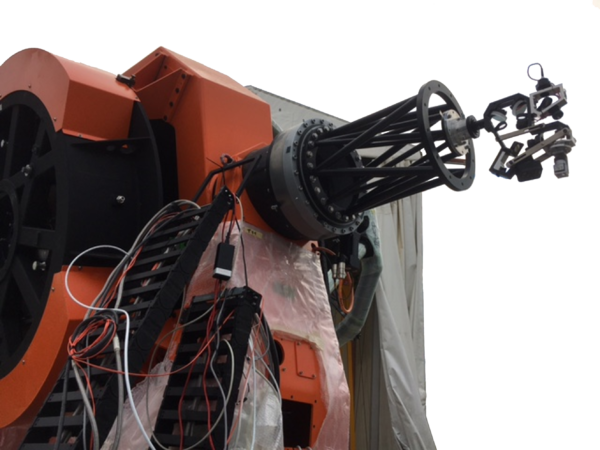

Connecting directly to the telescope eyepiece, CIAO is inserted between the telescope’s focal plane and the user plane (sensor or fiber holder) without modifying the optical path. Set up is facilitated by the embedded tip-tilt alignment interface and autocalibration tools. After pointing on the target, the user can close the Adaptive Optics loop with a simple click, to activate the aberrations correction or to lock in very fine pointing.

CIAO is best for

– High resolution imaging on planets or solar surface thanks to its compatibility with extended source
– SATCOM
– Free Space Optics (FSO) applications
– Stellar interferometry
– High performance spectrometry
– Space Situational Awareness (SSA)

Key features

– Easy to install add-on for ground-based telescopes from f/22 to f/8 aperture, 200mm up to 1m diameter
– VIS or SWIR operation
– Fast low light Shack-Hartmann wavefront sensor, 1kHz in visible, even faster in SWIR
– Internal source allows a very easy and simple auto-calibration
– Adjustable tip-tilt off-axis ball point for optical alignment
– Mirror response time: 5ms
– Single mode fiber holder for white light interferometry, spectroscopy  of FSO applications.

Software

– Dedicated software for fast AO loop control
– Many parameters are available to optimize the loop and adapt the configuration to the telescope, the seeing condition, the target and the application.

CIAO is a compact innovative adaptive optics add-on that enhances your telescope’s performance. We customize for our users: please contact us to discuss how it benefits your application
